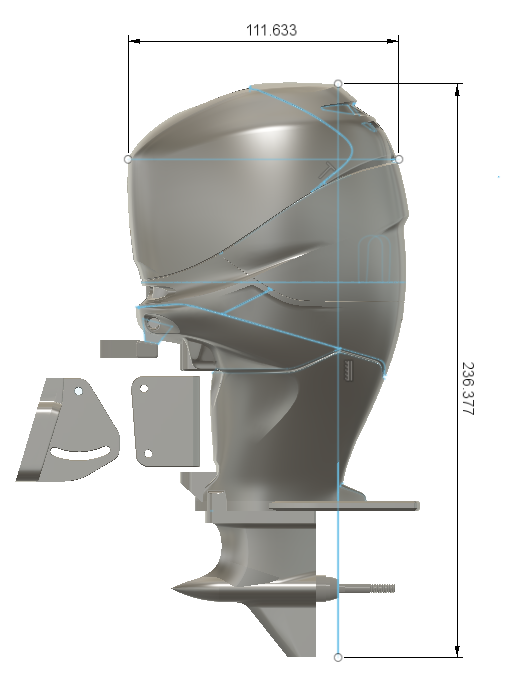

TMRC Verado 350 V3 Outboard — STL Pack

The next evolution of the TMRC outboard lineup is here.

Introducing the TMRC Verado 350 V3 STL Pack — engineered as a direct bolt-on upgrade for the TMRC 3660 V3 platform and designed specifically around the proven TFL lower unit setup.

This version features a redesigned mounting structure for improved rigidity, cleaner fitment, and improved long-term durability under high-power setups.

Built for serious RC offshore applications.

What's Included

• Verado 350 V3 cowling

• Updated V3 midsection

• Swivel bracket components

• Integrated mounting hardware locations

• Trim-compatible architecture

• Direct bolt-on compatibility with the TMRC 3660 V2 system

• STL files for 3D printing

Technical Specifications

Motor Compatibility: 3660 Brushless Water-Cooled Setup

Lower Unit Compatibility: TFL Lower Unit

Drive Shaft Length: To Be Determined (TBD)

Final shaft length specifications will be provided upon completion of testing and validation.

Lower Unit Mounting Hardware: 55 mm M2 screws

Steering / Swivel Bolt: M3 × 80 mm

Platform: Direct bolt-on to existing TMRC V2 system

Recommended Print Settings

Material: PETG / ASA / ABS

Walls: 5 walls

Infill: 5% 3D Honeycomb

Hardware: Heat inserts strongly recommended

Increase infill around high-stress mounting areas if running aggressive setups.

Designed For

• High-performance RC center consoles

• Catamarans

• Offshore race builds

• Twin, triple, quad, and quint outboard setups

• Scale replica projects

Required Non-Printable Components (Not Included)

These components are not printable and must be sourced separately.

3660 Brushless Motor (2150KV)
https://amzn.to/3OrRagp

Lower Unit – TFL B54210 H-KIT-E
https://tflnorthamerica.com/product/tfl-b54210-h-kit-e-for-b54210/

4.0 mm Stainless Steel Drive Shaft
https://amzn.to/4q64TGN

Length to be determined upon final testing.

Elastic Shaft Coupler (5 mm → 4 mm)
https://a.aliexpress.com/_msaWfy5

Reference Motor Mount Screw (Optional)
https://www.mcmaster.com/91273A349/

Any standard M3 screw of suitable length may be used.

YouTube Video Assembly Guide
https://youtu.be/vJ56jMa7Hlc?si=cNOe1XT5LX-_ekv-
