TMRC Predator 36CC STL Pack — Prototype Drop

Name: TMRC Predator 36CC STL Pack — Prototype Drop
Brand: Tremendous Marine RC
Price: 39.99 USD
Availability: InStock

⚠️ PROTOTYPE DISCLAIMER — READ BEFORE BUYING

This boat has NOT been printed by TMRC yet. We have designed and printed many boats in the past, but this one has not gone through our usual test print and water test. You are buying the first-release files as-is, at a discounted prototype price for exactly that reason.

Minor fit-ups or design revisions may follow once we print it ourselves. Every prototype buyer receives the updated files by email when the final version is released. If you want a fully print-tested pack, pick one from the Ready to Print collection.

DISCLAIMER

This is a digital STL file. No physical product will be shipped.
All sales are final. Due to the nature of digital downloads, no refunds or exchanges are offered.
Files are for personal use only. Redistribution, resale, or sharing of the files or printed parts is prohibited.
This is an original Tremendous Marine RC design and is not affiliated with, endorsed by, or associated with any real-world boat manufacturer.

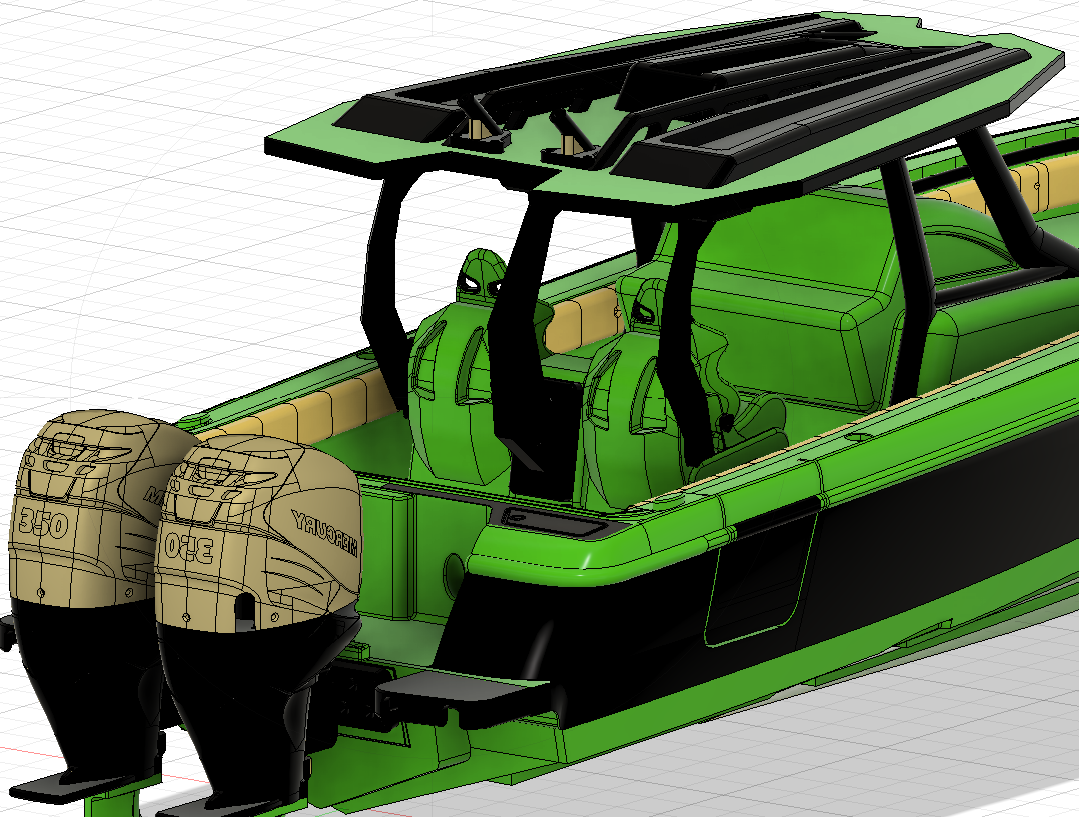

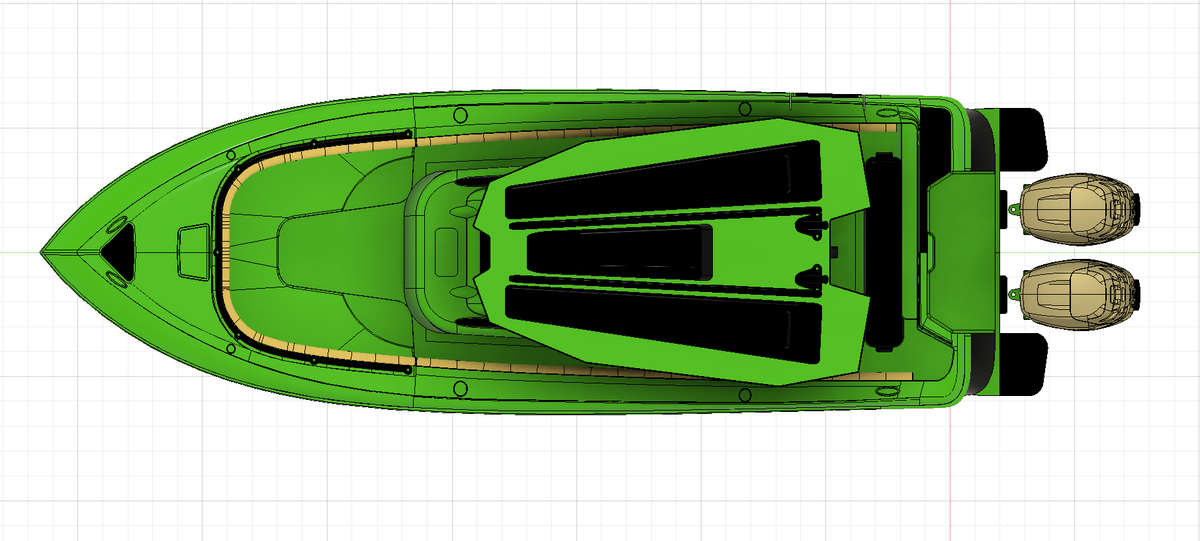

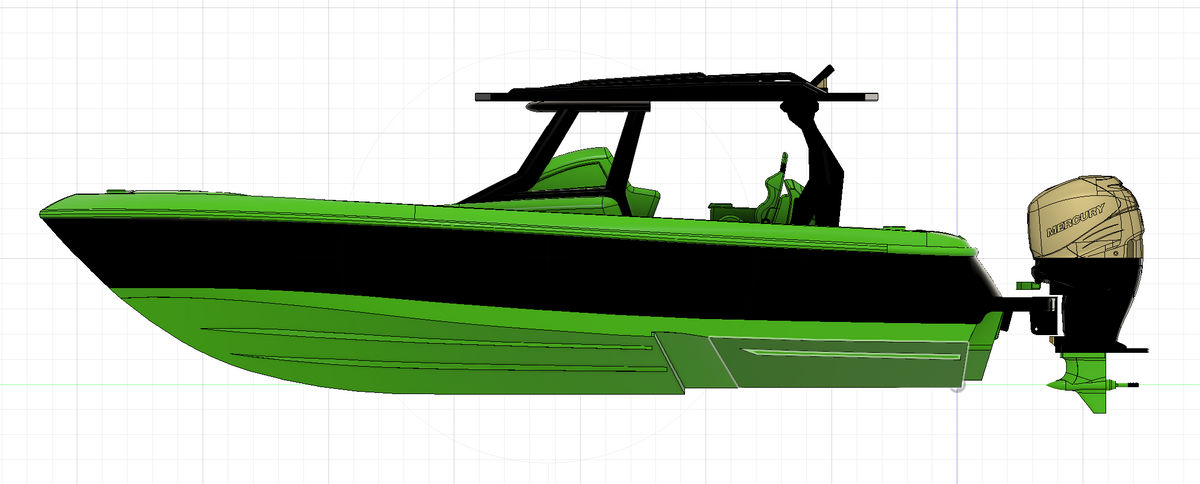

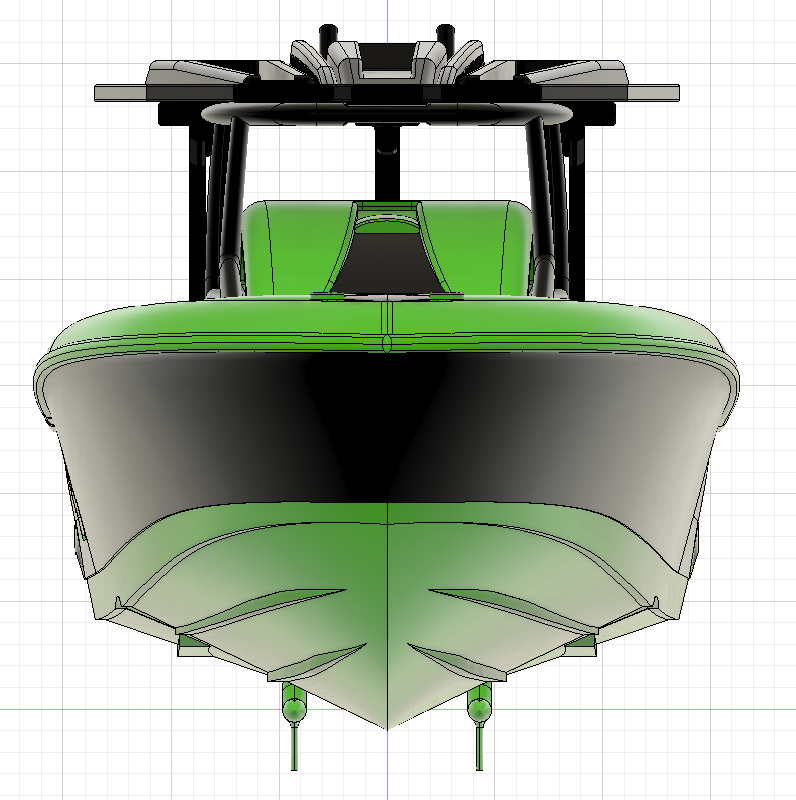

TMRC PREDATOR 36CC

A 36-inch offshore center console with a hardtop, twin bucket helm seats and twin outboards — the big brother of the Raptor 30CC, built for the TMRC V3 outboard platform.

The Predator 36CC takes everything builders liked about the Raptor and scales it up to a twin-engine offshore machine. Full center-console layout with a forward console lounge, a hardtop with rod holders, twin bucket seats at the helm, wraparound bow seating, and a pair of outboards hanging off the transom. Print it split on a standard 250 × 250 mm printer, or full-width on a 350 × 350 mm machine for fewer seams.

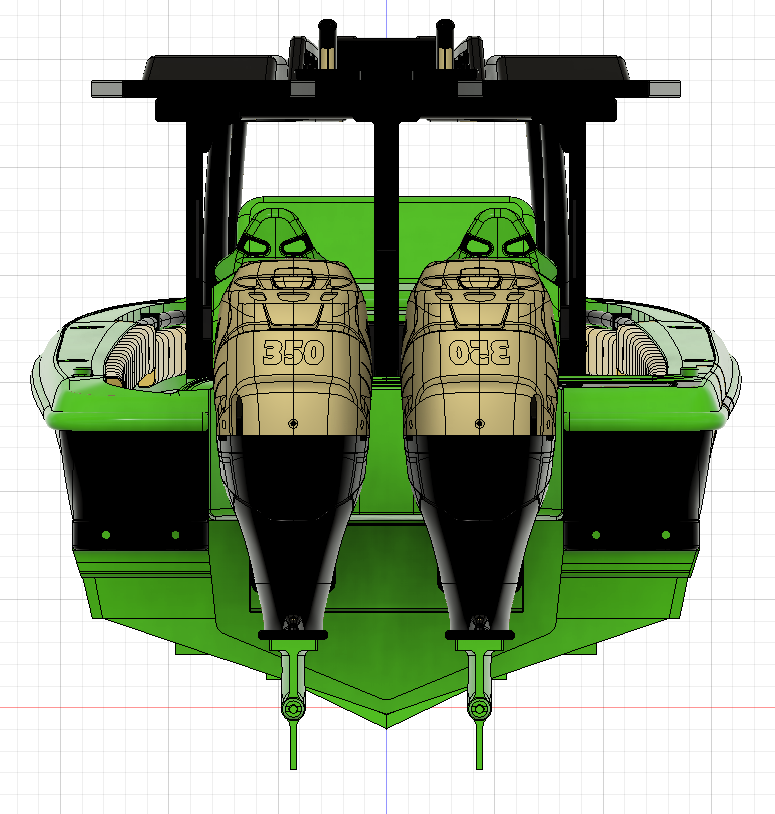

Twin TMRC V3 outboards — ready to bolt up

The transom is designed around a pair of TMRC V3 outboards, built on TFL lower units with 3660 brushless motor mounts and a steering ram. Any V3 outboard — as an STL pack, a fully printed ABS-CF motor, or a complete drive kit — bolts straight on. Shop V3 outboards →

Specifications

Hull Length: 36 in (913 mm)
Length Overall (with outboards): 43.5 in (1,104 mm)
Beam: 12.9 in (327 mm)
Height (keel to hardtop): 12.6 in (318 mm)
Drive: Twin outboards — TMRC V3 platform, TFL lower units, 35 mm brushless motor mounts
Style: Offshore center console with hardtop
Designed for: FDM 3D printers — split version for 250 × 250 mm beds, full-width version for 350 × 350 mm beds

What's Included

Complete hull and deck with twin-outboard transom
Center console with forward console lounge

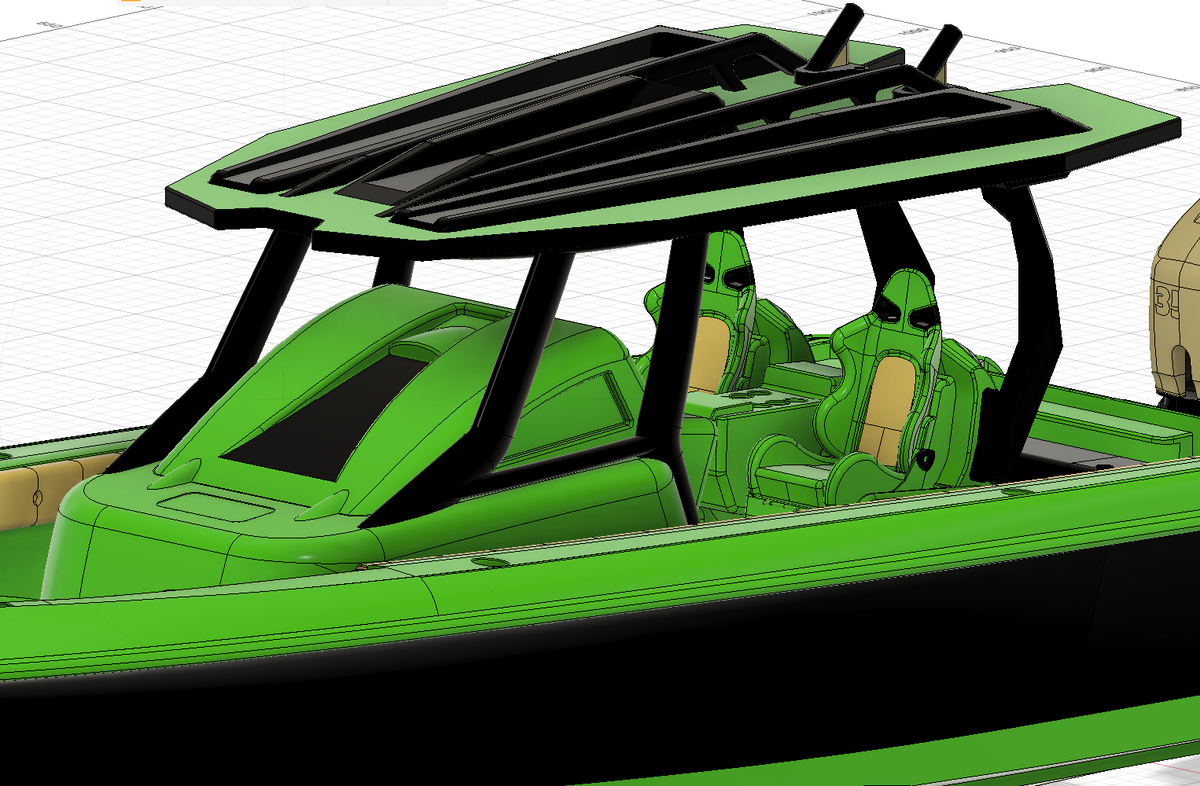

Hardtop with rod holders
Twin bucket helm seats
Wraparound bow seating and cushions
Twin scale outboard cowlings (display — V3 motors, lower units and electronics sold separately)
Steering ram mount and deck details
Complete STL pack in two versions: split for 250 × 250 mm printers and full-width for 350 × 350 mm printers
License & Disclaimer PDF with suggested print settings

Suggested Print Settings

Our usual TMRC settings. This design hasn't been test-printed by us yet, so treat them as a starting point and check transom fit before committing to the whole hull.

Material: PETG / ABS / ABS-CF
Nozzle: 0.4 mm
Walls: 4
Infill: 5% (3D Honeycomb or gyroid) — 15–20% around the transom, 100% on motor mounts and the hardtop frame
Layer Height: 0.2–0.28 mm
Top / Bottom: 4 / 4
Supports: Only where required (bow sections, hardtop, console overhangs)
Assembly: Glue sections with CA or epoxy, fill and sand seams, seal the hull interior before electronics go in. Split version: glue the centerline halves, then fill and sand the seam before glassing.
