TMRC Outboard bracket

DISCLAIMER

This is a digital STL file. No physical product will be shipped.
All sales are final. Due to the nature of digital downloads, no refunds or exchanges are offered.
Files are for personal use only. Redistribution, resale, or sharing of the files or printed parts is prohibited.
This is an original Tremendous Marine RC design and is not affiliated with, endorsed by, or associated with any real-world boat manufacturer.

---

TMRC FLAT TRANSOM OUTBOARD BRACKET ADAPTER

Run the newer TMRC outboard system on flat-transom hulls — no custom drilling.

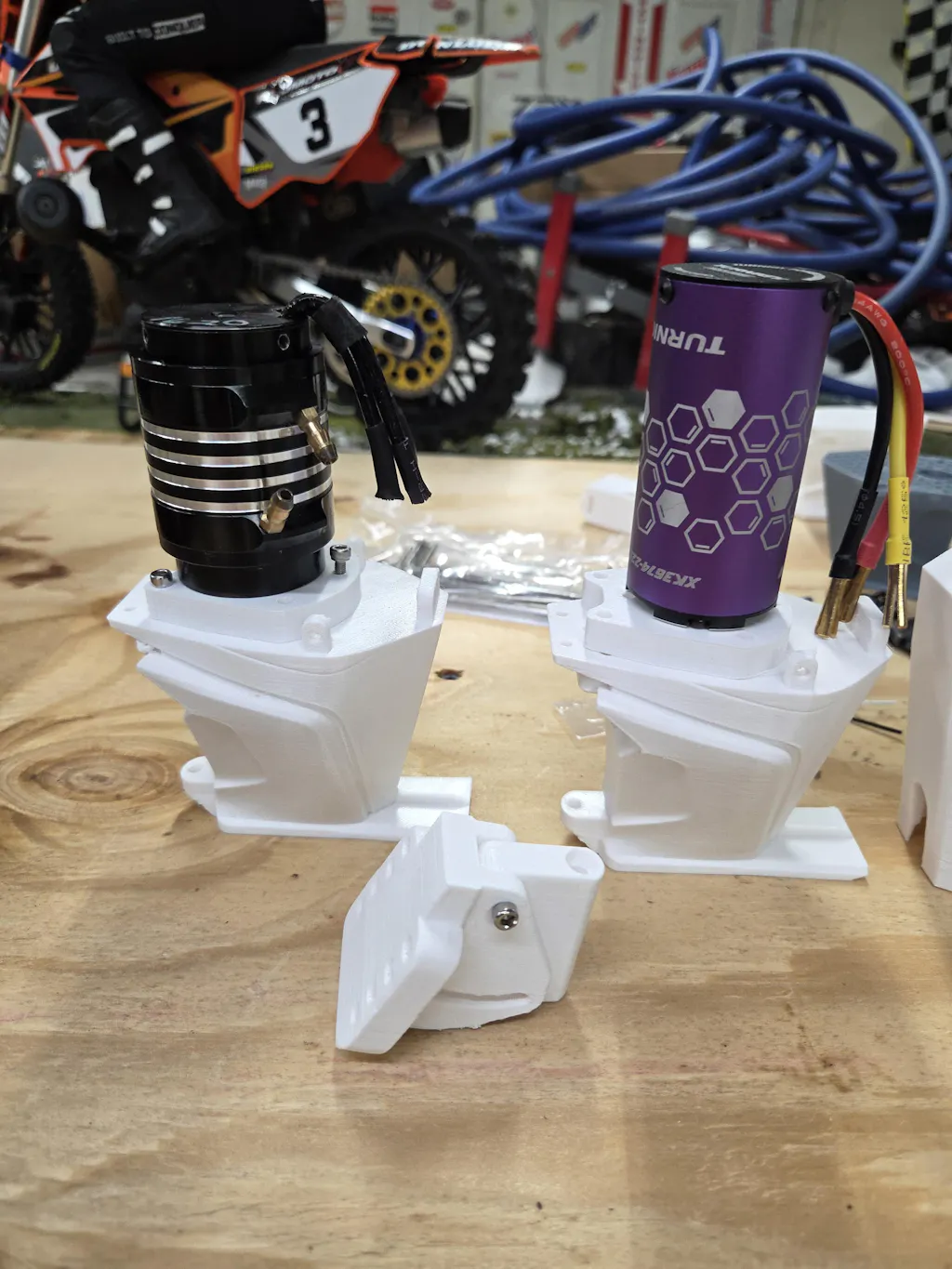

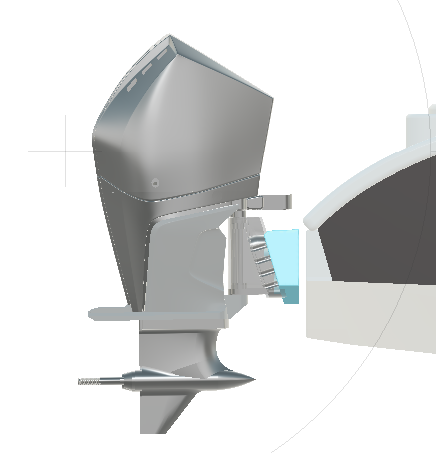

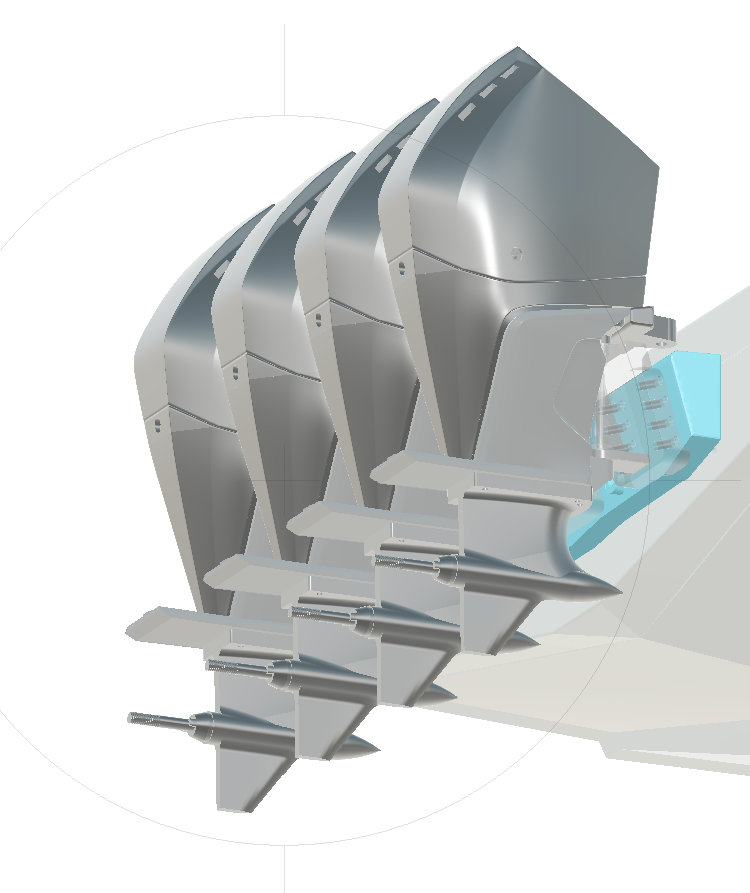

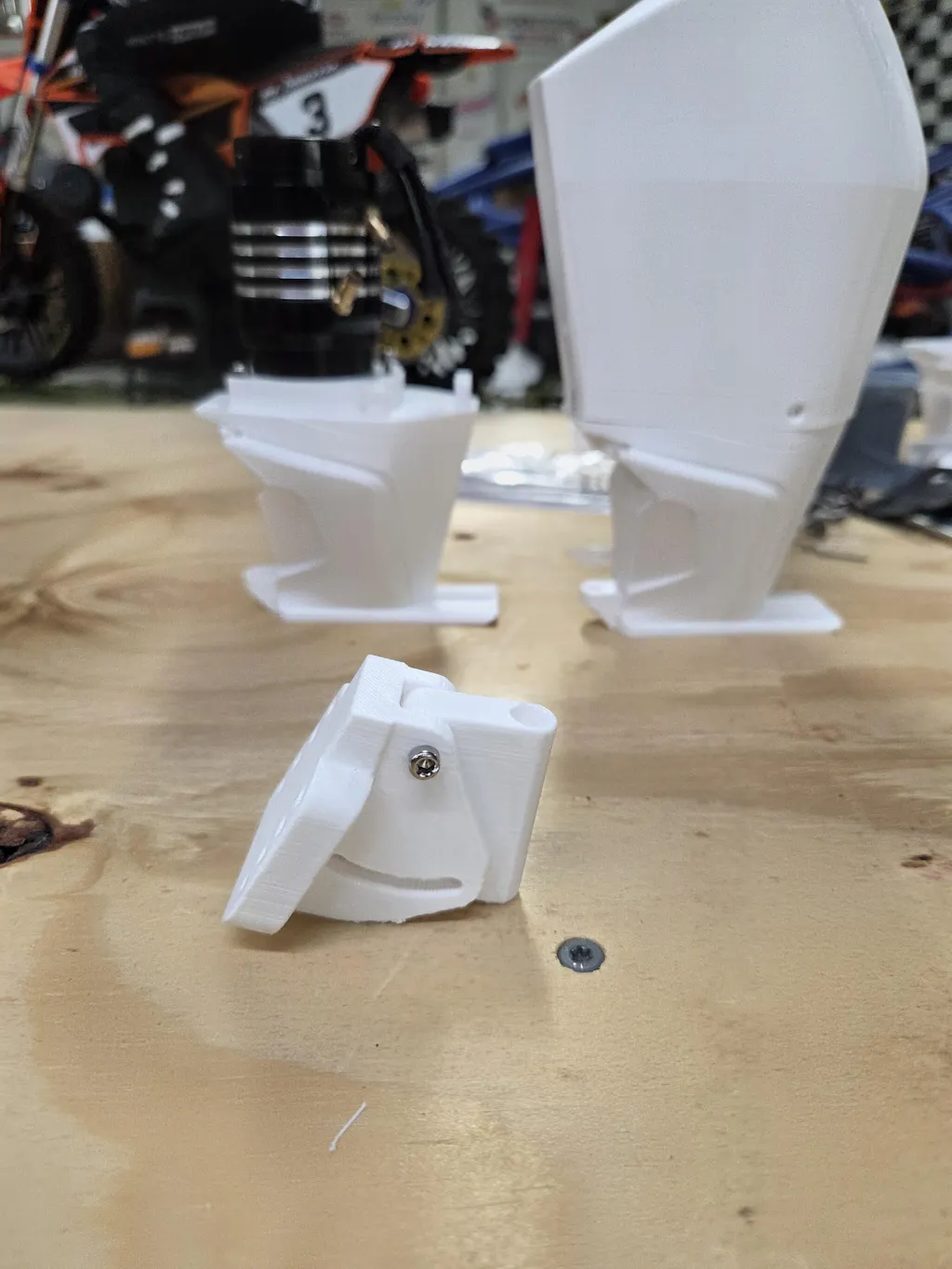

This adapter mounts TMRC outboard brackets to flat-transom RC boats, letting older hulls and legacy builds run the newer outboard system using the existing bracket mounting pattern.

No guesswork. The part bolts up clean using the bracket's four factory mounting holes.

---

Specifications

• Type: Flat transom outboard bracket adapter
• Mounting Pattern: TMRC outboard bracket, 4 factory holes
• Orientation: Print flat with the transom face on the build plate
• Supports: Not required
• Designed for: FDM 3D printers

---

What's Included

• STL file(s) for the Flat Transom Outboard Bracket Adapter
• Print-ready geometry optimized for strength

---

Recommended Print Settings

• Material: ABS / ABS-CF (preferred), ASA, or PETG
• Walls: 6
• Infill: 30%
• Layer Height: 0.20–0.28 mm
• Top / Bottom: 6–8 layers
• Supports: Not required

---

Filament

Printed in SUNLU PETG. Get it here (affiliate link): https://store.sunlu.com?sca_ref=11554757.OetPZf1JlD&utm_source=sunluaffiliate&utm_medium=sunluaffiliate&utm_campaign=sunluaffiliate

---

Required Non-Printable Components (Not Included)

• M5 heat-set threaded inserts installed in the transom
• M5 stainless steel mounting screws through the 4 existing bracket holes
• Marine sealant (3M 5200) or 2-part epoxy between the adapter and transom

Sealant or epoxy is required to prevent movement, water intrusion, and long-term stress on the fasteners.

---

Assembly Notes

• This is a DIY RC performance component — proper installation is critical for strength and reliability
• Test fit before final assembly
• Minor sanding or tolerance adjustment may be required depending on printer and material

---

Digital Download Only

No hardware, motors, electronics, shafts, couplers, or drive components included.

---
