TMRC Merc Pro 400 V3 Outboard — STL Pack

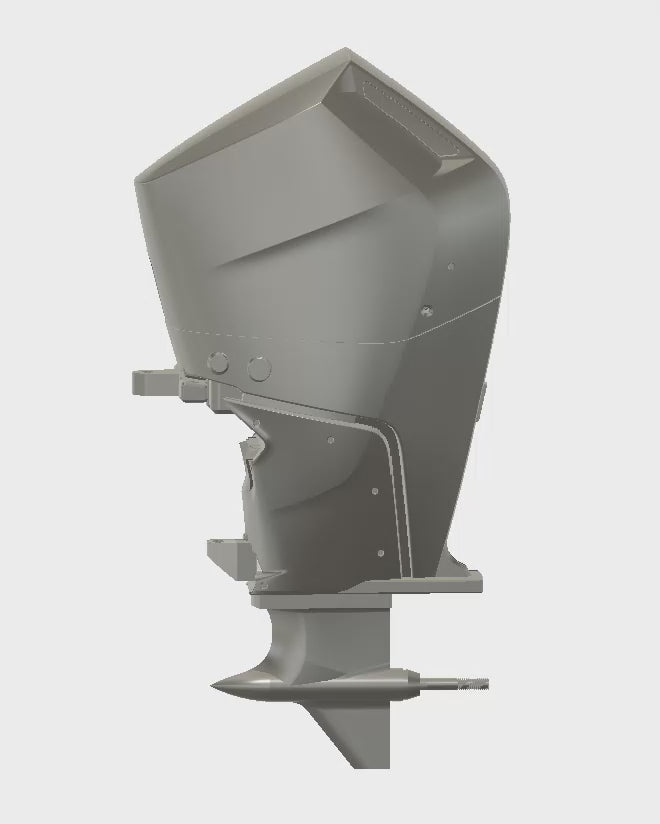

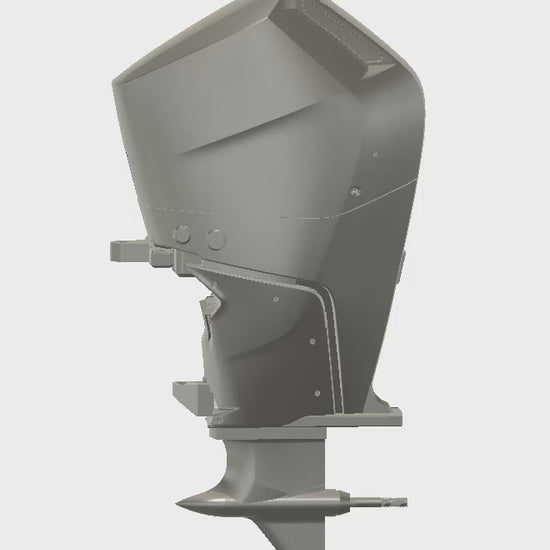

Digital STL files, not a physical motor. The TMRC Merc Pro 400 V3 is a 3D printable RC outboard: cowling, V3 midsection and swivel bracket, built on the TMRC 3660 V3 platform and designed around a 3660 water-cooled brushless motor and the proven TFL lower unit setup.

This version features a redesigned mounting structure for improved rigidity, cleaner fitment, and better long-term durability under high-power setups. Built for serious RC offshore applications.

---

Specifications

• Platform: TMRC 3660 V3
• Motor Compatibility: 3660 brushless water-cooled setup
• Lower Unit Compatibility: TFL lower unit
• Drive Shaft: 44.3 mm, 4 mm stainless
• Lower Unit Mounting Hardware: 55 mm M2 screws
• Steering / Swivel Bolt: M3 × 80 mm

---

What's Included

• Merc Pro 400 V3 cowling
• Updated V3 midsection
• Swivel bracket components
• Mounting hardware locations integrated into the design
• Trim-compatible architecture
• STL files for 3D printing

---

Recommended Print Settings

• Material: PETG / ASA / ABS
• Walls: 5
• Infill: 5% (3D Honeycomb)
• Layer Height: 0.2–0.28 mm
• Hardware: Heat inserts strongly recommended
• Increase infill around high-stress mounting areas on aggressive setups

---

Required Non-Printable Components (Not Included)

These parts are not printable and must be sourced separately. The TMRC Complete Drive System bundles the lower unit, motor, couplers and drive shaft in one kit.

• 3660 Brushless Motor (2150KV) — https://amzn.to/3OrRagp
• Lower Unit — TFL B54210 H-KIT-E — https://tflnorthamerica.com/product/tfl-b54210-h-kit-e-for-b54210/
• 4.0 mm Stainless Steel Drive Shaft — https://amzn.to/4q64TGN
  Required exposed length: 21.34 mm ± 0.5 mm
• Elastic Shaft Coupler (5 mm → 4 mm) — https://a.aliexpress.com/_msaWfy5
• Reference Motor Mount Screw (Optional) — https://www.mcmaster.com/91273A349/
  Any standard M3 screw of suitable length may be used

---

Assembly Video

Watch the TMRC V3 outboard assembly walkthrough on YouTube

---

Designed For

• High-performance RC center consoles
• Catamarans
• Offshore race builds
• Twin, triple, quad, and quint outboard setups
• Scale replica projects

---

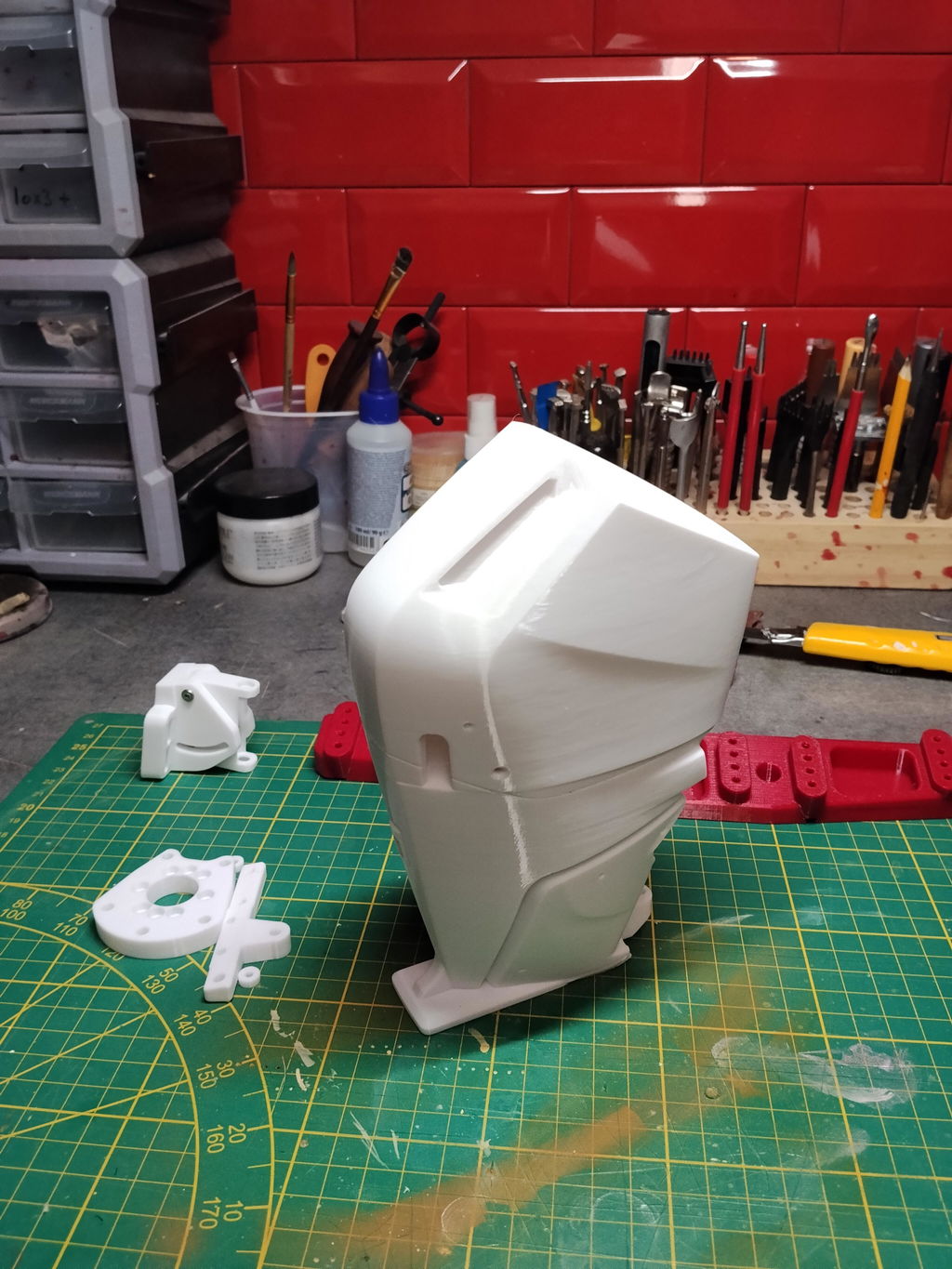

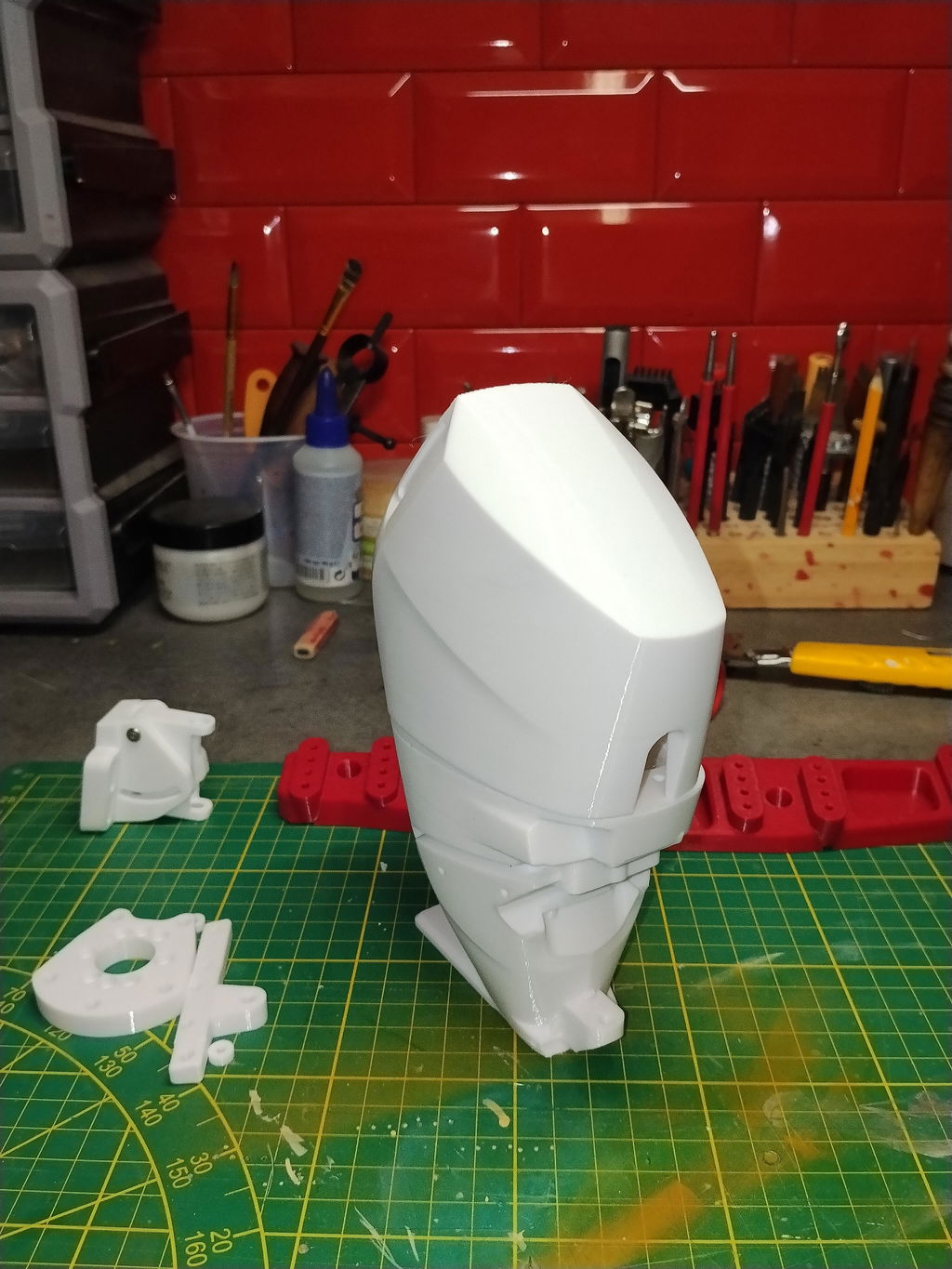

Filament

Printed in SUNLU PETG. Get it here (affiliate link): https://store.sunlu.com?sca_ref=11554757.OetPZf1JlD&utm_source=sunluaffiliate&utm_medium=sunluaffiliate&utm_campaign=sunluaffiliate

---

Digital Download Only

No hardware, motors, electronics, shafts, couplers, or drive components included.

---

DISCLAIMER

This is a digital STL file. No physical product will be shipped.
All sales are final. Due to the nature of digital downloads, no refunds or exchanges are offered.
Files are for personal use only. Redistribution, resale, or sharing of the files or printed parts is prohibited.
This is an original Tremendous Marine RC design and is not affiliated with, endorsed by, or associated with any real-world boat manufacturer. TMRC is not affiliated with Mercury Marine.

---
